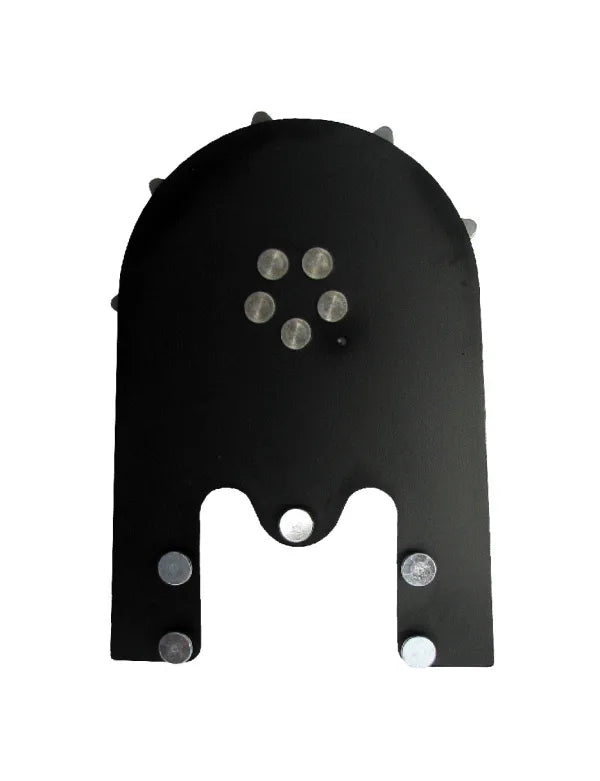

Forester® 5 Rivet Sprocket Nose Replaces Oregon® OEM# 34775

Heavy-duty professional replacement tip designed for solid-steel chainsaw guide bars

Engineered to be a direct replacement for Oregon® OEM# 34775

Built to withstand the rigors of professional logging and high-output cutting

Technical Specifications
Pitch: .325"

Gauge Compatibility: Multi-gauge (Works with .050", .058", and .063")

Sprocket Tooth Count: 12 Teeth

Mounting Type: 5-Rivet / 6-Rivet heavy-duty design (Replacement for single-rivet styles to provide superior stability)

Cross-Reference: Oregon 34775, Power Cut™, and Power Match® series tips

Key Performance Features
Superior Durability: The 5-rivet pattern (sometimes referred to as the 6-hole heavy-duty design) provides a more secure attachment than standard single-rivet tips, significantly reducing the risk of nose failure under high tension

High-Speed Large Radius: Features a 12-tooth sprocket that reduces friction and heat buildup, allowing the chain to move at higher speeds with less wear on the bar and nose

Heat-Treated Alloy Steel: Manufactured from premium alloy steel and heat-treated for maximum resistance to wear and "spreading" of the nose rails

Universal Gauge Fit: The nose is precision-machined to accept all standard .325" pitch chain gauges (.050, .058, .063), making it a versatile addition to your service kit

Bar Body Protection: Designed as a replaceable unit so that if the nose takes a hit or wears out, you can swap the tip rather than replacing the entire expensive solid-steel bar

Installation & Compatibility
Fits: Forester "W" and "FP" series solid bars, as well as most professional Oregon Power Cut (formerly Power Match), WoodlandPRO, and Cannon sprocket nose bars

Includes: (1) Replacement Sprocket Nose. (Note: Installation typically requires a hammer and a punch to secure the rivets)
